RGBlink mini-mx SDI
Key Features
- 10-channel mixing: 4×4K HDMI + 4×3G-SDI inputs with bidirectional NDI® & UVC
- Dedicated multiview preview output + built-in 5.5-inch touchscreen control
- Professional multi-channel audio with Phantom power, noise reduction, EQ, echo, reverb & voice fusion
- Simultaneous streaming to up to 4 RTMP platforms via TAO Cloud
- USB 3.0 webcam output (YUY2/MJPEG) for seamless integration with Zoom, YouTube, Facebook
- On-board PTZ camera control, chroma key, PIP, transitions, and dynamic output management

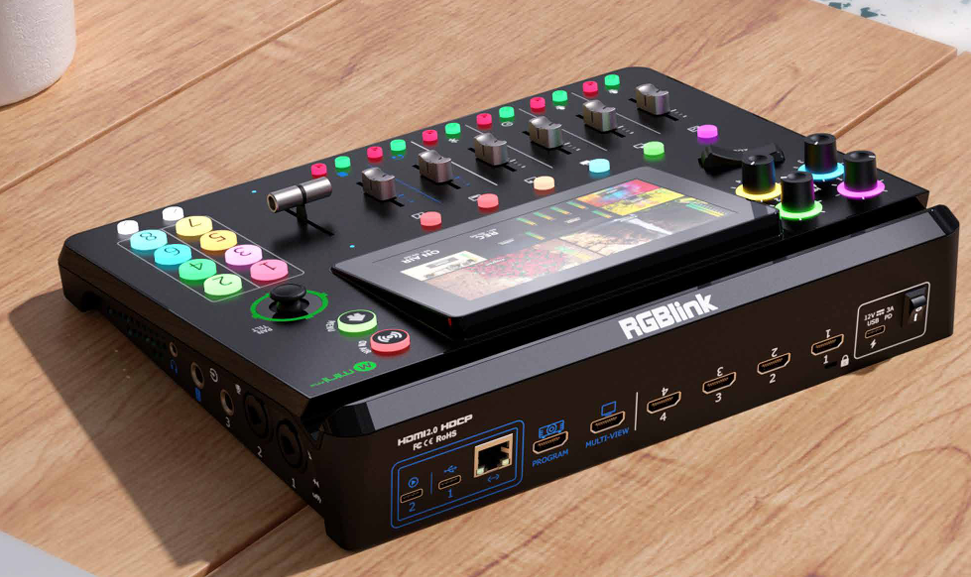

RGBlink mini-mx SDI
10-Channel 4K Streaming Video Mixer with SDI & NDI – mini-mx SDI
The RGBlink mini-mx SDI, available from PanSolutions — your trusted partner for professional AV and broadcast solutions in South Africa — is a powerful, compact 10-channel streaming video mixer that combines 4K HDMI and 3G-SDI inputs, bidirectional NDI® and UVC, advanced multi-channel audio processing, direct PTZ camera control, dedicated multiview preview output, and simultaneous multi-platform live streaming in one portable, touch-enabled device.
Designed for demanding hybrid production environments, the mini-mx SDI delivers broadcast-grade performance with 8 physical inputs (4×4K HDMI + 4×3G-SDI), bidirectional IP workflows, professional audio tools (noise reduction, EQ, echo, reverb, voice fusion), and seamless integration via WebAPP and TAO Cloud — making it the ideal all-in-one solution for education, sports, worship, events, conferences, and corporate live productions.
Technical Highlights
- 8 physical inputs: 4 × HDMI 2.0 (up to 4K@60) + 4 × 3G-SDI
- Bidirectional NDI® (encoder + decoder, license-enabled)
- Bidirectional UVC (webcam mode + USB disk recording / wireless audio)
- 2 × HDMI outputs (configurable: dedicated multiview preview, Program, Test Pattern)
- USB 3.0 output (YUY2 / MJPEG webcam capture for Zoom, YouTube, Facebook Live)
- Professional audio inputs: 2 × Phantom power XLR, 1 × Line in, 1 × Mic, Bluetooth audio
- Built-in 5.5-inch TFT touchscreen for multiviewer display, menu navigation & live control
- Advanced audio processing: Noise Reduction, Equalizer, Echo, Reverberation, Voice Fusion
- On-board PTZ camera control (VISCA over IP)
- Features: Chroma Key, Picture-in-Picture (PIP), transitions, overlays, dynamic output control
- WebAPP remote control + TAO Cloud integration
- Simultaneous live streaming to up to 4 platforms (RTMP)
- Compact & portable design with flexible power options
Ideal Applications
- Education – Hybrid classrooms, lecture capture with multiview, webcam output & PTZ control
- Sport – Multi-camera live switching with SDI inputs and low-latency streaming
- Worship – Houses of worship productions with advanced audio processing and silent operation
- Event – Live events, conferences, and corporate functions with NDI® & SDI connectivity
- Conference – Boardrooms and hybrid meetings with UVC webcam + multi-platform RTMP streaming
