RGBlink mini-edge SDI
Key Features
- 6 × 4K60 HDMI inputs for comprehensive multi-source switching
- Built-in 7-inch touchscreen multiview for live preview and intuitive control
- Integrated audio mixer with embedded HDMI + analog audio support
- Chroma key, PIP, overlays, and customizable transitions/effects
- Web-based remote control + open API for flexible operation
- Optional subscription unlocks NDI® output, recording, PTZ control, and more

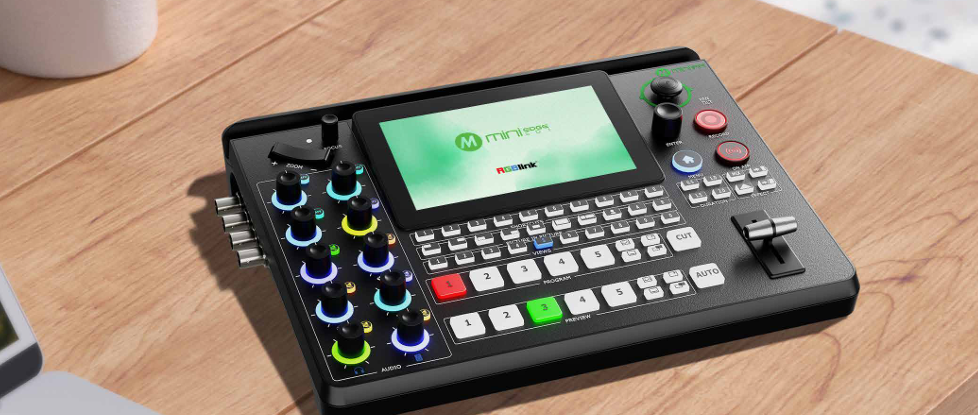

RGBlink mini-edge SDI
All-in-One 4K Hybrid Switcher with SDI, NDI & Multi-Platform Streaming
The RGBlink mini-edge SDI, available from PanSolutions — your trusted partner for professional AV and broadcast solutions in South Africa — is a powerful, compact hybrid production switcher that combines 4K HDMI and 3G-SDI inputs, bidirectional NDI® and UVC, built-in multiviewer, audio mixing, chroma key, transitions, PTZ control, and multi-platform live streaming in one portable device.
Designed for demanding hybrid environments, the mini-edge SDI supports simultaneous multi-view preview, program output, test patterns, USB webcam capture, USB disk recording, Bluetooth audio, noise-reduced analog inputs, and TAO Cloud remote management — making it ideal for education, sports, worship, events, and corporate conferences where flexibility, reliability, and broadcast-grade connectivity are essential.
Technical Highlights
- 4 × HDMI 2.0 inputs (up to 4K@60) + 4 × 3G-SDI inputs
- Bidirectional NDI® (encoder + decoder, license-enabled)
- Bidirectional UVC (webcam mode + USB disk recording / wireless audio)
- 2 × HDMI outputs (configurable: multiview preview, Program, Test Pattern)
- USB 3.0 output (YUY2 / MJPEG webcam capture for Zoom, YouTube, Facebook Live)
- Audio inputs: 1 × Phantom power XLR, 1 × Line in, 1 × Mic, Bluetooth audio
- Built-in 5.5-inch TFT touchscreen for multiviewer display and menu control
- Advanced features: chroma key, picture-in-picture (PIP), transitions, overlays, dynamic output control, noise reduction on analog audio
- On-board PTZ camera control (VISCA over IP)
- WebAPP remote control + TAO Cloud integration
- Simultaneous streaming to up to 4 platforms (RTMP)
- Compact & portable design with flexible power options
Ideal Applications
- 8 total inputs: 4 × 4K HDMI + 4 × 3G-SDI for mixed-source production
- Bidirectional NDI® (encoder + decoder) and UVC for modern IP & USB workflows
- Built-in 5.5-inch TFT multiviewer touchscreen for live preview & control
- Simultaneous multi-platform streaming (up to 4 RTMP destinations) via TAO Cloud
- USB 3.0 webcam output (YUY2/MJPEG) for Zoom, YouTube, Facebook Live
- Professional audio with Phantom power, noise reduction, Bluetooth, and embedded SDI/HDMI audio
Available from PanSolutions
With decades of experience in broadcast and professional video, PanSolutions delivers complete Panasonic IP production solutions — from system design and integration to training and nationwide support.
Discover the Panasonic AV-HSW10 — compact switching power built for modern IP live production.
