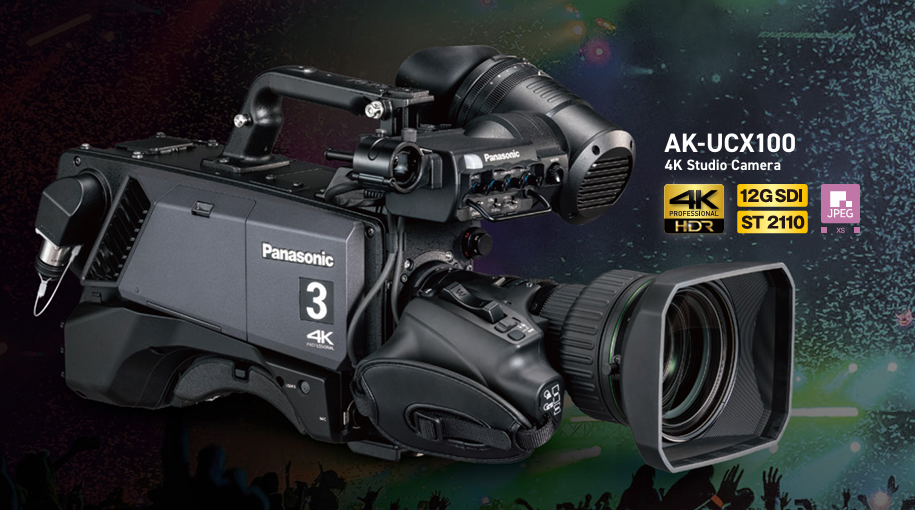

AK-UCX100 | 4K Studio Camera
Key Features
CCU-less Operation
All image processing is built directly into the camera head, enabling seamless IP or SDI connectivity without the need for a Camera Control Unit (CCU). When paired with the optional fibre adaptor, the system supports power and data transmission over long distances, making it ideal for mobile productions and multi-venue deployments.
SMPTE ST 2110 & NDI® High Bandwidth Support
Designed for the IP production era, the AK-UCX100 supports SMPTE ST 2110 for uncompressed 4K video over IP, NDI® High Bandwidth, SRT, and Dante® network audio. Dual SFP28 slots allow redundant 4K connections for low-latency, high-reliability broadcast workflows
High-Precision Focus & Moire Reduction
Advanced focusing technology, including image-plane phase detection and a visual focus guide, enables fast and accurate focus control during live production. An integrated optical low-pass filter helps reduce moiré effects from LED walls, delivering clean, professional visuals in event and concert environments.
Flexible Operation & Compatibility
Featuring a 2/3-type bayonet lens mount, built-in ND filters, and support for multiple SDI outputs (12G, 6G, 3G, 1.5G), the AK-UCX100 integrates seamlessly into both IP and SDI workflows. It is fully compatible with Panasonic PTZ systems, remote operation panels, and existing studio infrastructures for scalable production environments.
AK-UCX100 | 4K Studio Camera
Future-Ready Performance for the IP Era
The Panasonic AK-UCX100, available through PanSolutions — the sole authorised distributor of Panasonic Broadcast and Professional Video products in South Africa — redefines studio and live-event production with next-generation 4K performance and full IP workflow integration.
Powered by a 19.29-megapixel MOS sensor, the AK-UCX100 delivers true 4K 2000 TV-line resolution with exceptional colour accuracy, dynamic range, and low-light sensitivity (F10/F11 at 2000 lux). Its Hybrid Log Gamma (HDR) and BT.2020 colour space capabilities ensure natural colour reproduction and cinematic detail — even in complex lighting conditions
Technical Highlights
- 19.29 MP MOS sensor delivering 4K 2000 TV-line resolution
- Dual shooting modes: Normal and Low Light
- Simultaneous HDR/HLG (BT.2020) and SDR (BT.709) outputs
- High-speed shooting up to 2× (4K) and 4× (HD)
- Dual SFP28 for 4K redundant connection and optical fibre transmission
- Support for TSL 5.0 Tally Input and Genlock
- S/N ratio of 62 dB or higher
Ideal Applications
- Broadcast studios and live production
- Concert venues and houses of worship
- Sports coverage and field broadcasting
- Corporate communication and hybrid events
Available from PanSolutions
PanSolutions delivers industry-leading broadcast and professional video solutions, backed by expert consultation, system design, and nationwide support. As the trusted Panasonic partner in South Africa, we help you build future-ready production environments with confidence.
Discover the AK-UCX100 — advanced 4K imaging and IP integration for the next generation of broadcast production.
