AK-HC3900GSJ | HD Studio Camera
Key Features
B4 Mount & Advanced Lens Support
The 2/3-type bayonet mount accepts standard 2/3" lenses without an external adaptor. The specially designed internal optics maximise incident light on the large sensor for outstanding image quality. Additional features include a 2x digital extender, built-in optical ND filters, Chromatic Aberration Compensation (CAC), and comprehensive focus assist tools (Focus Bar, Focus-in-Red, MAG, and Focus Square) for quick, accurate focusing — even with auto-focus or digital lenses.
Long-Distance Optical Fibre Transmission
Uncompressed HD video signals can be transmitted up to approximately 1.2 km when powered by the AK-HCU250 Camera Control Unit. Extend transmission distance to 10 km using an external power supply and general-purpose optical equipment. The system also supports IP control via LAN and video TRUNK functions for flexible multi-camera setups combining studio and PTZ cameras.
ST 2110 Upgrade Support without CCU
Using the optional AK-SFC391 software key (sold separately), the AK-HC3900GSJ transmits broadcast-grade uncompressed HD video directly over IP with low latency — no CCU required. It supports ST 2110 return video, reference (PTP), TRUNK, prompter, and IP intercom. This upgrade enables seamless integration with the IT/IP platform KAIROS, dramatically reducing space, cabling, and power consumption (up to 60 % savings in multi-camera operations).
4K Upgrade Support
The optional AK-HUC01 4K/12G-SDI Interface Kit adds true 4K output (2160/59.94p, 50p, etc.) with 2000 TV-line horizontal/vertical resolution. It supports HDR, BT.2020 colour space, and flexible interfaces including 12G-SDI and 3G-SDI Quad Link. Simultaneous 4K/HDR/BT.2020 and HD/SDR/BT.709 output is possible, perfect for hybrid production environments.
AK-HC3900GSJ | HD Studio Camera
High-Quality HD Video with Optional 4K & ST 2110 IP Upgrades

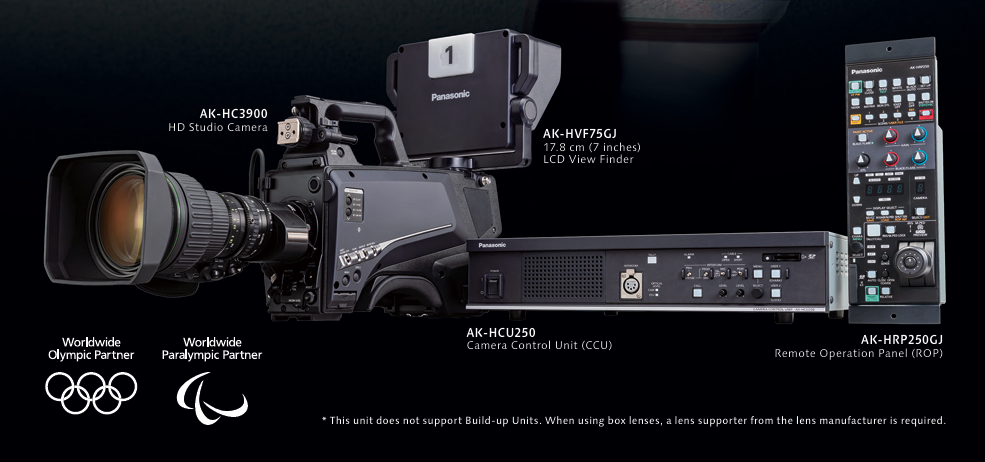

The Panasonic AK-HC3900GSJ (LEMO connector model), available through PanSolutions — the sole authorised distributor of Panasonic Broadcast and Professional Video products in South Africa — delivers outstanding full-HD performance with a large 11.14-megapixel image sensor for exceptional sensitivity, low noise, and superior operability. Designed for studio production, live events, and sports, this HD studio camera offers optional paid upgrades for 4K video and direct SMPTE ST 2110 IP connectivity, enabling a future-ready system with excellent colour reproduction, high dynamic range, and seamless integration into modern broadcast workflows.
Technical Highlights
- Large 11.14-megapixel MOS sensor with high sensitivity of F10 (59.94 Hz) / F11 (50 Hz) at 2000 lx and low noise (S/N ratio of 62 dB or higher)
- Multi-format HD support including 1080/59.94p, 50p, 59.94i, 50i, 23.98PsF and more
- High-speed scanning (1/100 sec) for significantly reduced skew compared to standard cameras
- Optional 4K upgrade delivering 2000 TV-line resolution, HDR, and ITU-R BT.2020 colour space
- Optional ST 2110 upgrade for direct IP transmission (CCU-less) with low latency
- Built-in B4 2/3-type bayonet mount with internal ND filters (Clear, 1/4, 1/16, 1/64)
- HDR mode with rich gradation and simultaneous HDR/SDR output support
Ideal Applications
- Broadcast and news studios
- Live sports and event coverage
- Concert venues and worship centres
- Corporate communication and hybrid events
- IP-based remote and distributed production
Available from PanSolutions
PanSolutions delivers industry-leading broadcast and professional video solutions, backed by expert consultation, system design, and nationwide support. As the trusted Panasonic partner in South Africa, we help you build future-ready production environments with confidence.
For more information or to discuss how the AK-HC3900GSJ can elevate your broadcast or live production workflow, contact PanSolutions today.
